Assets

Simple store supports the upload, storage and management of assess (files) that can be associated with Products and Categories. Examples of assets include: jpg, gif, png, pdf.

Portal View

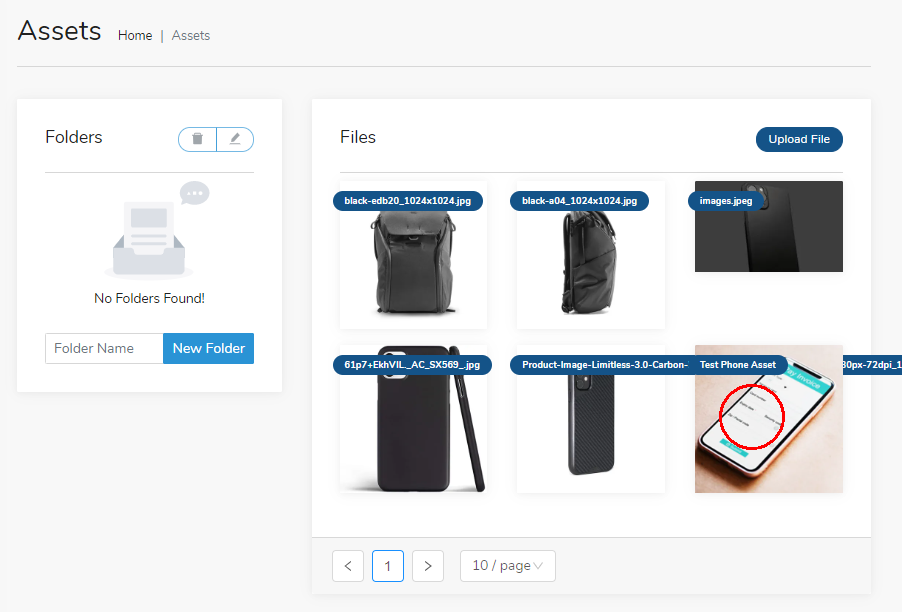

Accessing Assets

Assess the Assets screen in the console via the console navigation bar.

Add New Asset

Click Upload File to upload and create the new asset.

Specify a Title, Description and Access Permission.

Access Permission allow an assets to be defined as Public or Private

Drag and Drop the asset to upload.

Click Submit.

Edit Assets

Assets can be accessed by clicking on the main asset screen:

File Details can be edited.

Click Save to commit your modifications.

Assets can be deleted by clicking the Delete button.

Asset Properties

Folders

Assets can be stored in a hierarchy of folders.

Attributes
Sample Object
Attributes

Element

Description

folderId

Unique Identifer for the Folder

version

An incremental version number tracking changes to the folder configuration

name

Name

parentId

A parent folder identifier to support the creation of a hierarchical/tree based structure of related folder

attributes

Attributes are a list of Key/Value to support customisation of a folder

Sample Object
{
"folderId": "string",
"version": "string",
"name": "string",
"parentId": "string",
"attributes": {}
}

Files

Files represent the range of assets that can be stored and managed.

Attributes
Sample Object
Attributes

Element

Description

fileId

Unique Identifer for the File

version

An incremental version number tracking changes to the folder configuration

title

Title of Image

description

Description

contentType

Content-Type of file

fileName

File Name

length

File Length

width

Width of File (images)

height

Height of File (images)

accessUrl

Access Url

accessPermission

Access Permission

attributes

Attributes are a list of Key/Value to support customisation of a folder

isActive

Is Active

folderId

Reference to Containing Folder Id

edgeUrl

Edge Url

Sample Object
{
"fileId": "string",
"version": "string",
"title": "string",
"description": "string",
"contentType": "string",
"fileName": "string",
"length": 0,
"width": 0,
"height": 0,
"accessUrl": "string",
"accessPermission": 0,
"attributes": {},
"isActive": true,
"folderId": "string",
"edgeUrl": "string"
}
